PlanTracer

Facility Management Software

PlanTracer is a simple-to-use application that can perform complex automation from real -estate inventory using legacy floor-plans of any building. Plans are the foundation of PlanTracer and possess several unique features – plans consist not only of graphic primitives such as lines, arches and geometrical shapes, as found in other CAD -systems, but also of PT-objects - walls, stairs, windows, doors, rooms, furniture, fixtures etc. These objects are converted and can be edited as one unit. Thus, a floor plan created using PlanTracer represents a set of PT-objects that can be given as inventory related to the real -estate. Besides PlanTracer core functionality of making it possible to take an original CAD -drawing of a building, or use a plan from paper; the principle of transforming the initial plan into a plan consisting of PT objects is that PlanTracer (using preset Search patterns of objects) searches for similar imagery on the initial plans, and, having recognized these, inserts them into the corresponding place of the corresponding Graphical image.

Features

Floor plan creation

Three modes of floor plan creation are available:

  • Automatic conversion of original floor plans made from room measuring to parametric model (parametric mode).
  • Traditional floor plan drawing using parametric library objects (library mode).
  • Floor plan creation from measured outer and inner contours of the building (contour mode).

All modes allow the use of precise drawing tools: object snapping, relative object insertion, dynamic dimensioning, and more.

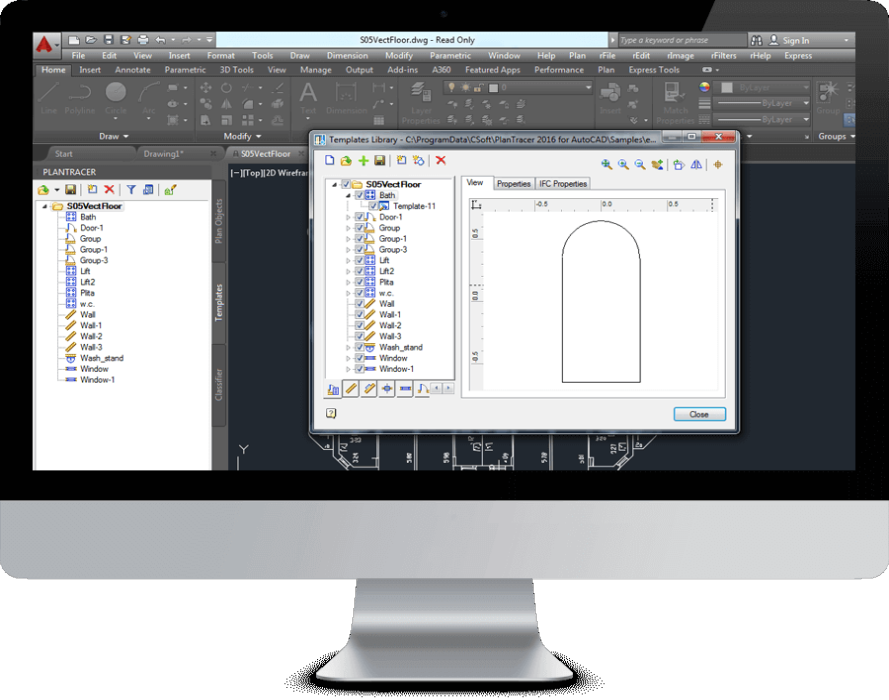

Object Library

All building elements in a parametric floor plan model are stored using templates in the Object Library. This library is user managed. Libraries are loaded and unloaded as required. Library objects can be created directly from AutoCAD blocks or sets of entities.

Creating exact room contours

FM users usually create contours for rooms according to on-site measurements. The user obtains exact floor space areas with corresponding formulas to calculate them.

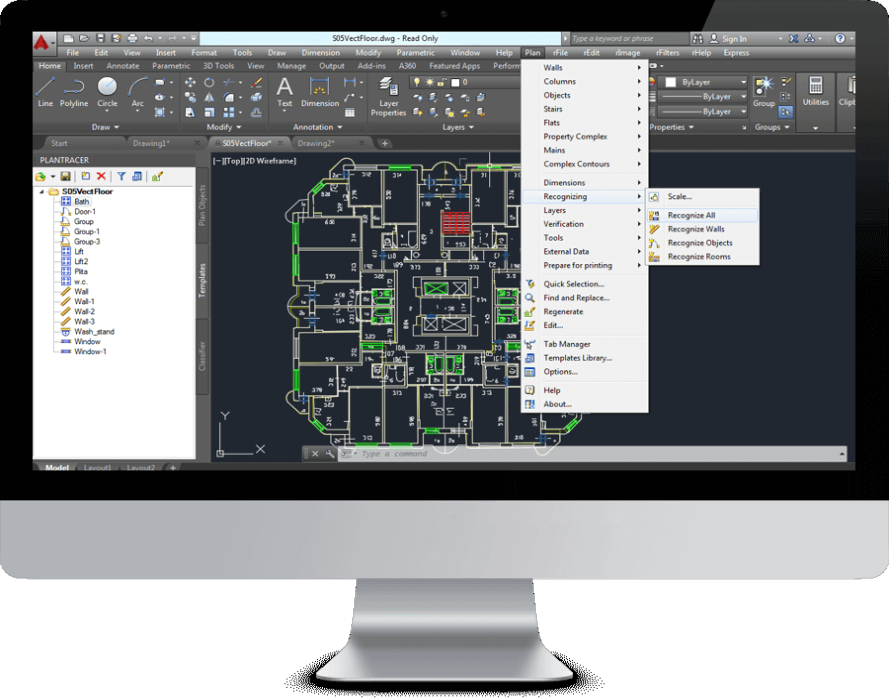

Floor plan recognition and conversion

  • Automatic conversion of original floor plans made from room measuring to parametric model (parametric mode)
  • Traditional floor plan drawing using parametric library objects (library mode).
  • Floor plan creation from measured outer and inner contours of the building (contour mode).

Download PlanTracer

Download
Brochure
